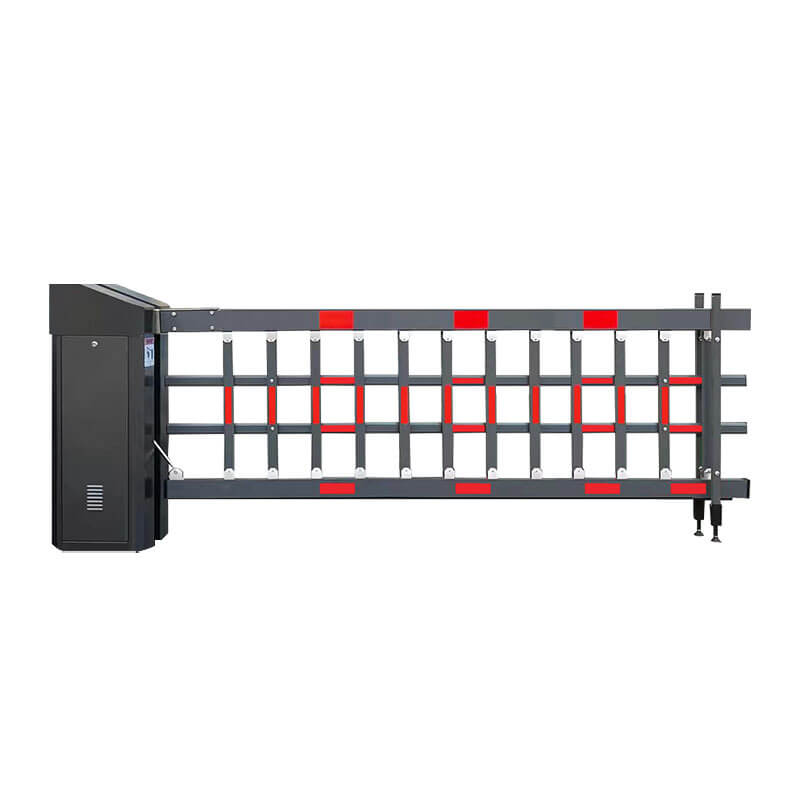

| Product Specifications |HKB03 Barrier Gate | |
|---|---|
| Motor Power | 250W |
| Motor Brand | Self-developed |
| Raising Speed | Approx. 9 seconds (depending on pole length) |
| Maximum Height | 1200 mm + pole length (50 mm reserved) |
| Motor Operating Temperature | -30°C to +80°C |
| Input Power | AC 110V / 220V, 50–60 Hz |
| Protection Grade | IP54 |
| Remote Control Frequency | 430 MHz |
| Remote Control Distance | Up to 30 meters |
| Pole Height from Ground | 1168 mm |
| Maximum Pole Length | 6 meters |
| Pole Specifications | Main pole: 150 × 50 × 1.5 mm Sub-pole: 60 × 35 × 1.0 mm Horizontal & vertical bar: 55 × 15 × 0.6 mm |
| Standard Accessories | 2 remote controllers, 2 mechanical keys |
| Product Features | Fine workmanship, premium design, smooth and stable barrier operation |
| Net Weight | 145 kg |
| Packing Size | 1275 × 690 × 450 mm |
| Packaging Box Thickness | 2.0 mm |
| Packaging Box Dimensions | 780 × 550 × 1450 mm |
| Surface Treatment | High-temperature baking paint |
| Material | Cold-rolled steel plate |
